Battery in backup field: PL series (large capacity battery) |
||||||||||
|
No. |
Battery model |
Rated voltage (V) |
Rated capacity(Ah) |
Overall size ±2%(mm) |
Terminal |
|
Remark |
|||
|
long |
width |
height |
Total height |
Type |
Position |
|||||
|

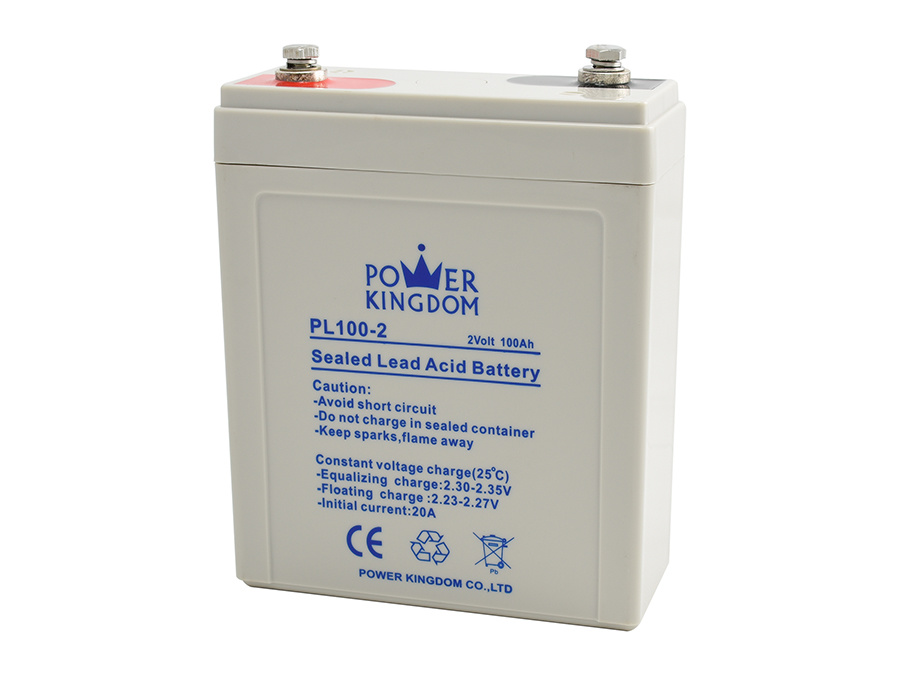

452 |
PL100-2B |
2 |
100 |
170 |
72 |
205 |
208 |
T14 |
E |
|
|
453 |

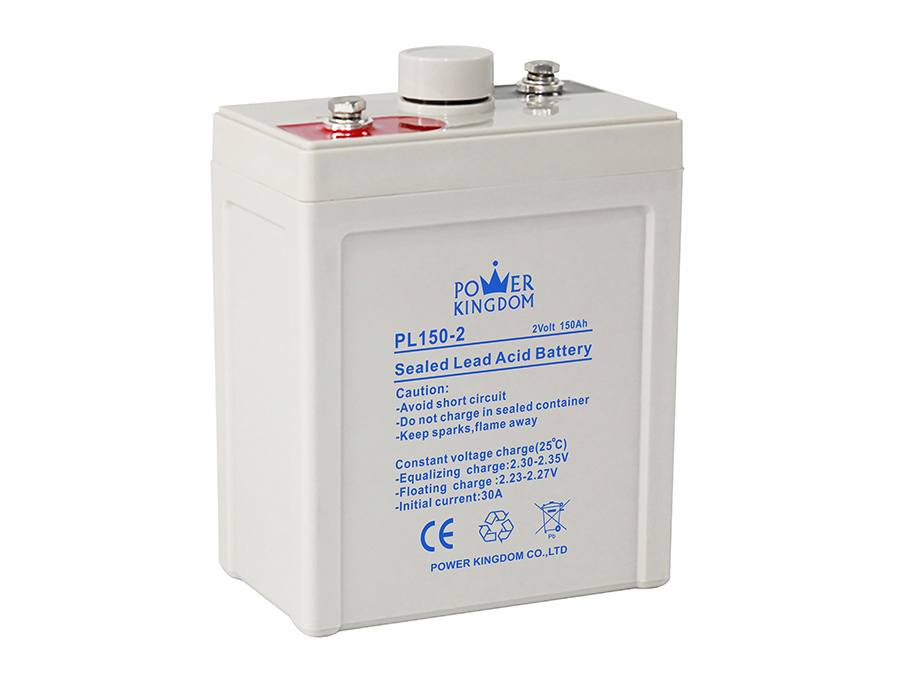

PL150-2B |
2 |
150 |
172 |
102 |
205 |
228 |
T14 |
E |
|
|
903 |
PL180-2V |
2 |
180 |
172 |
111 |
329 |
366 |
T14 |
G |
|
|

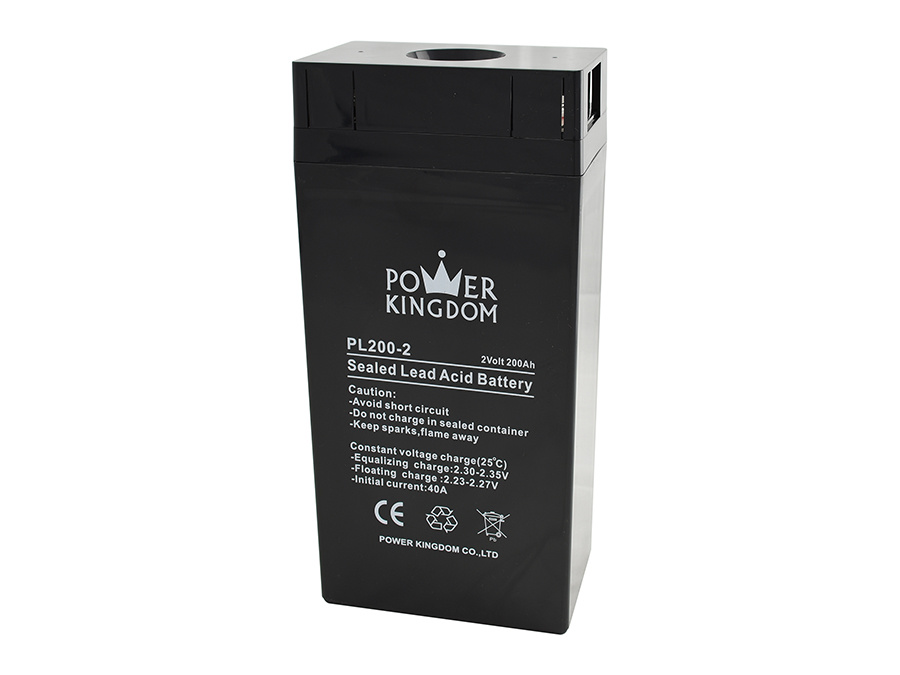

925 |
PL200-2B |
2 |
200 |
172 |
111 |
329 |
366 |
T14 |
G |
|
|
904 |
PL250-2V |
2 |
250 |
171 |
150 |
329 |
366 |
T14 |
G |
|
|

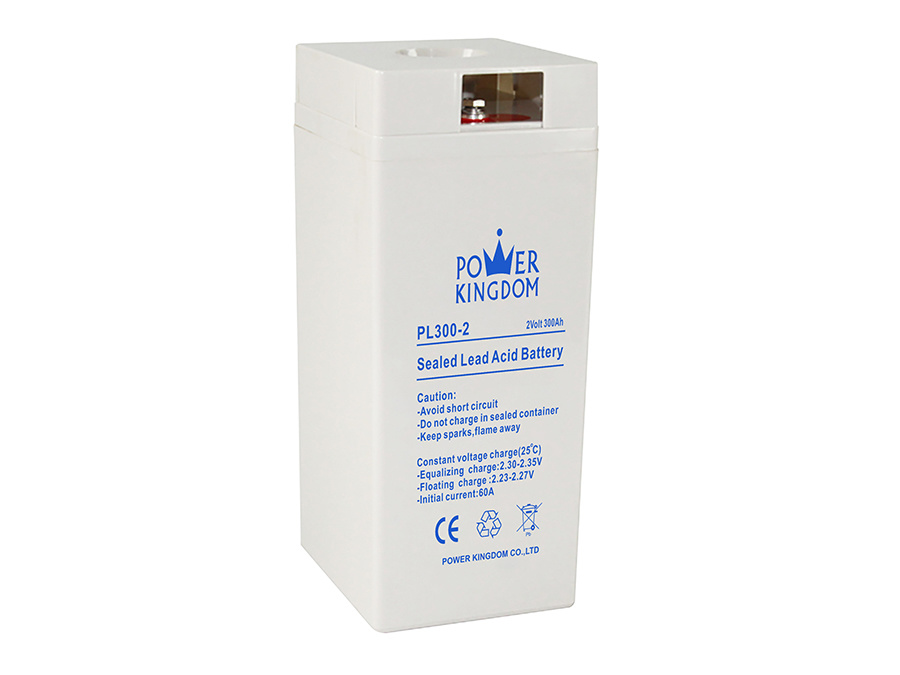

926 |
PL300-2B |
2 |
300 |
171 |
150 |
329 |
366 |
T14 |
G |
|
|

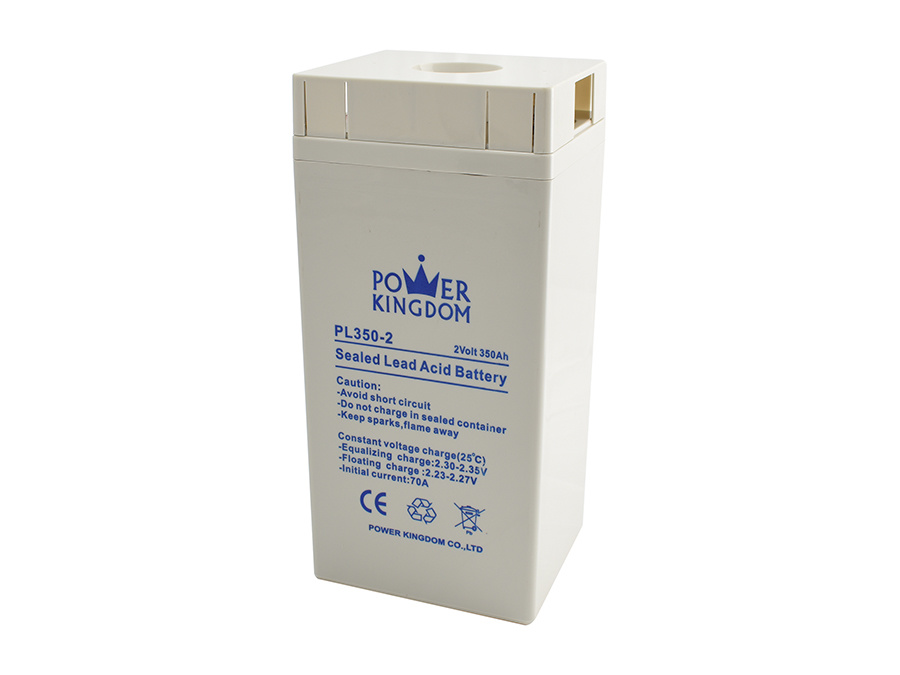

678 |
PL350-2 |
2 |
350 |
171 |
150 |
329 |
366 |
T14 |
G |
|
|
905 |
PL350-2V |
2 |
350 |
211 |
176 |
329 |
366 |
T14 |
H |
|
|
927 |
PL400-2B |
2 |
400 |
211 |
176 |
329 |
366 |
T14 |
H |
|
|
680 |
PL450-2 |
2 |
450 |
211 |
176 |
329 |
366 |
T14 |
H |
|
|
906 |
PL450-2V |
2 |
450 |
241 |
172 |
330 |
366 |
T14 |
H |
|
|

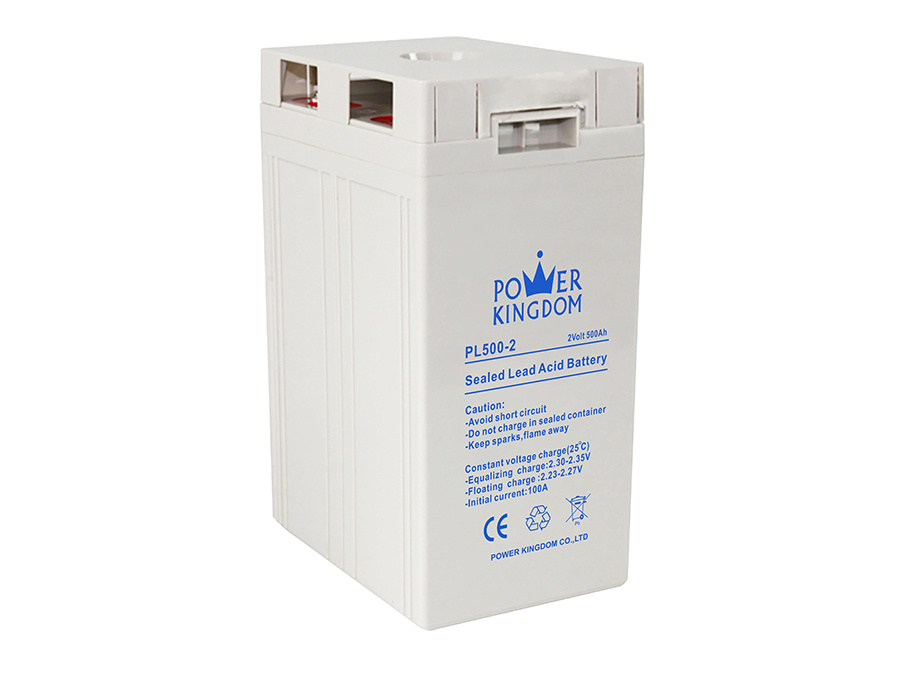

928 |
PL500-2B |
2 |
500 |
241 |
172 |
330 |
366 |
T14 |
H |
|
|

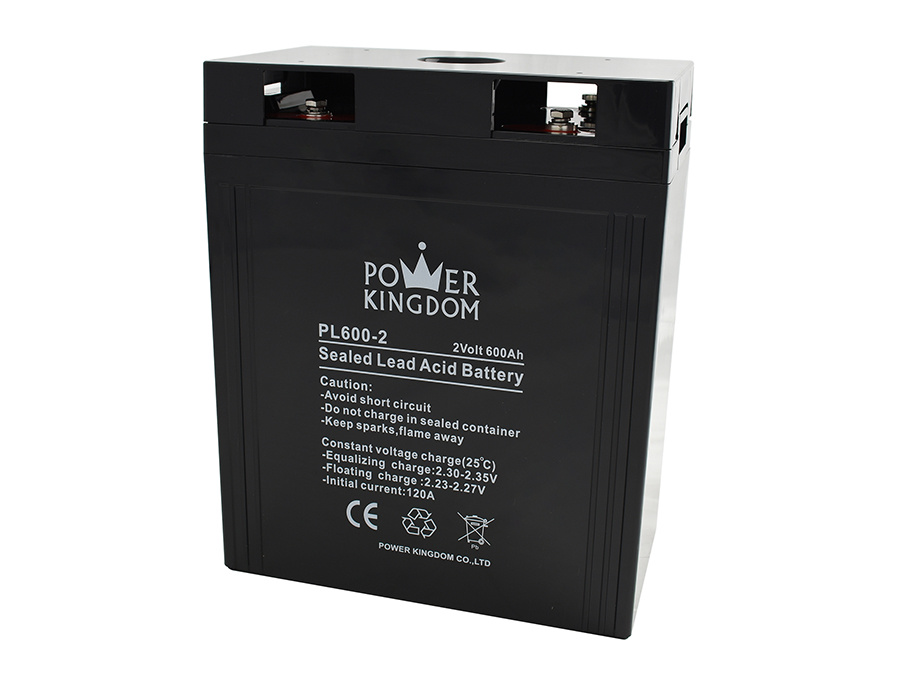

929 |
PL600-2B |
2 |
600 |
301 |
175 |
330 |
366 |
T14 |
H |
|
|
930 |
PL800-2B |
2 |
800 |
410 |
176 |
330 |
365 |
T14 |
M |
|
|

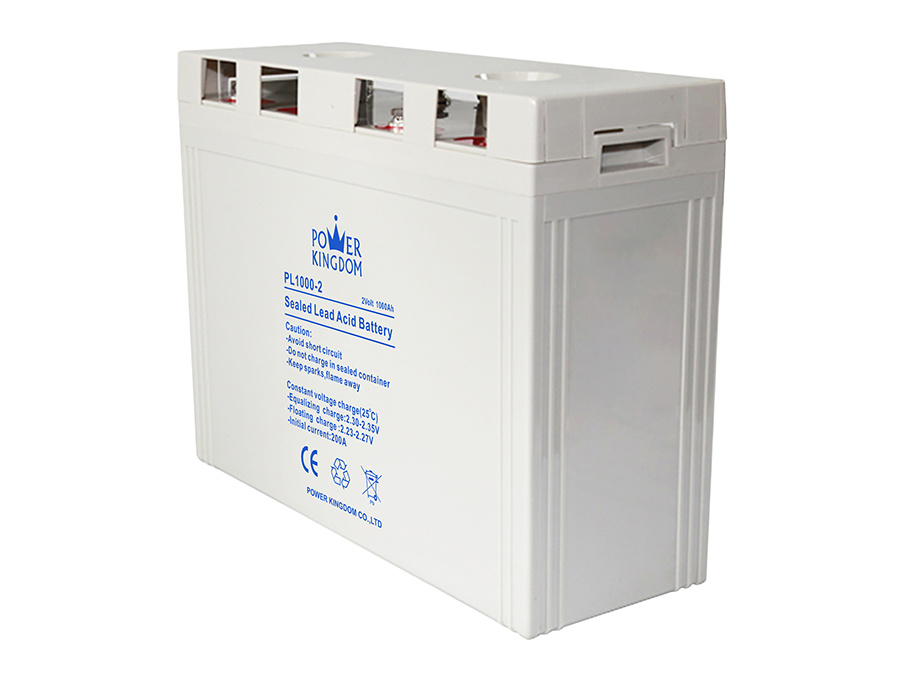

931 |
PL1000-2B |
2 |
1000 |
475 |
175 |
329 |
365 |
T14 |
M |
|
|
685 |
PL1200-2 |
2 |
1200 |
475 |
175 |
329 |
365 |
T14 |
M |
|
|

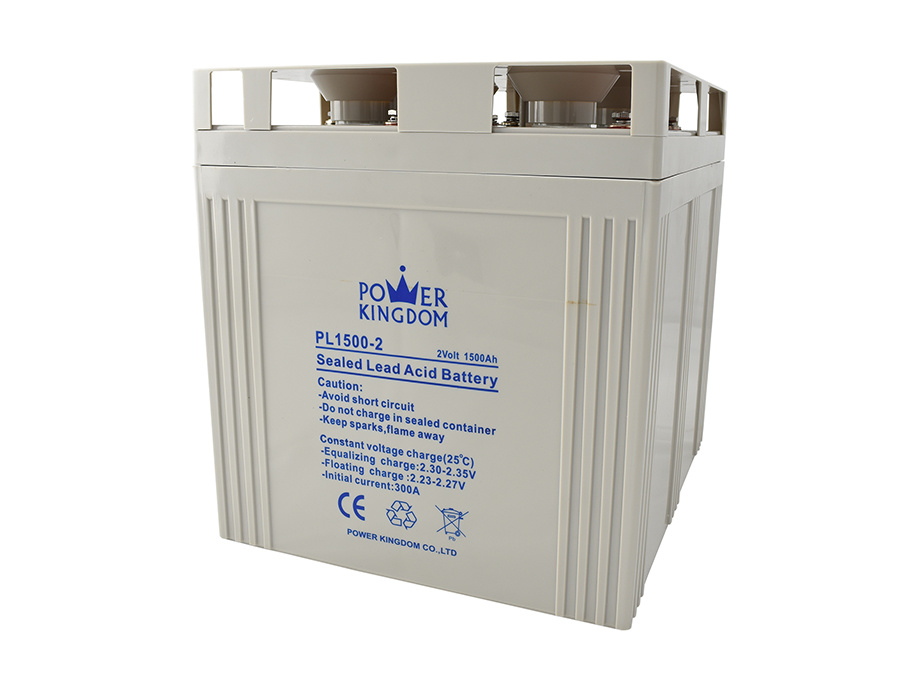

932 |
PL1500-2B |
2 |
1500 |
400 |
350 |
341 |
382 |
T14 |
N |
|
|
933 |

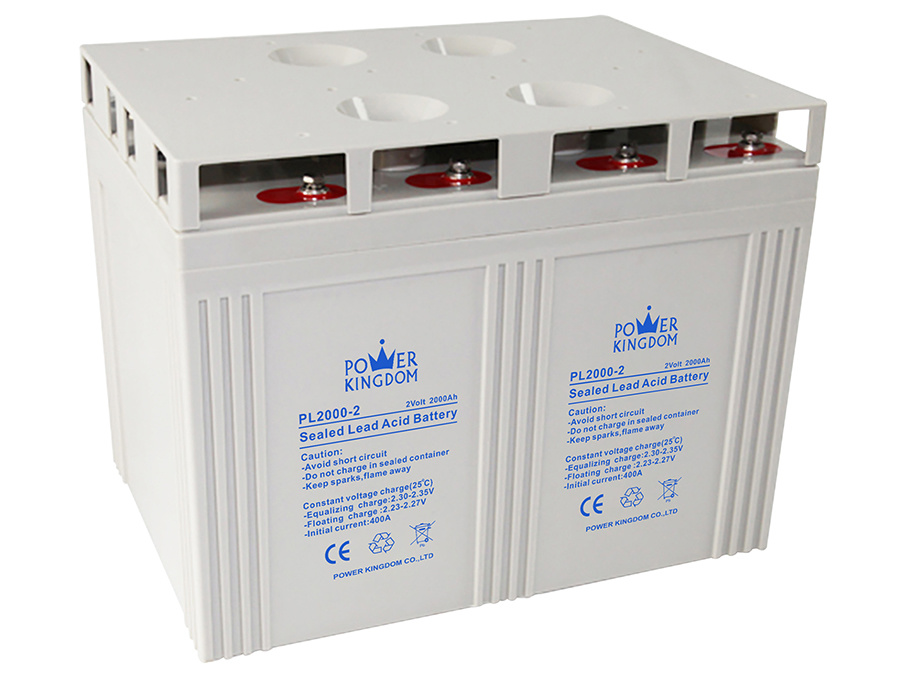

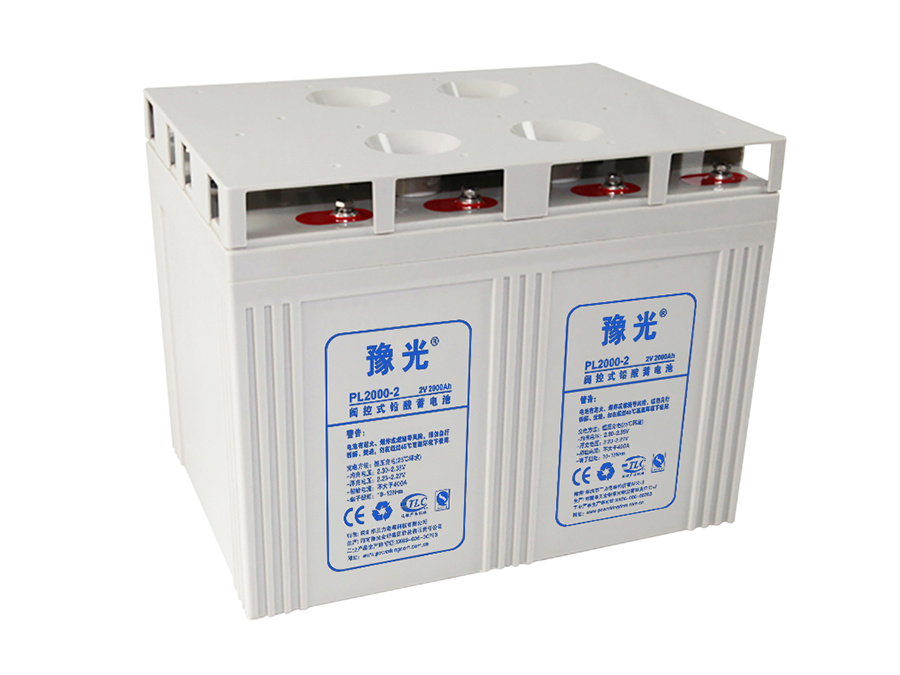

PL2000-2B |
2 |
2000 |
491 |
351 |
344 |
383 |
T14 |
O |
|
|
934 |
PL3000-2B |
2 |
3000 |
712 |
353 |
341 |
382 |
T14 |
O |
|
|
688 |

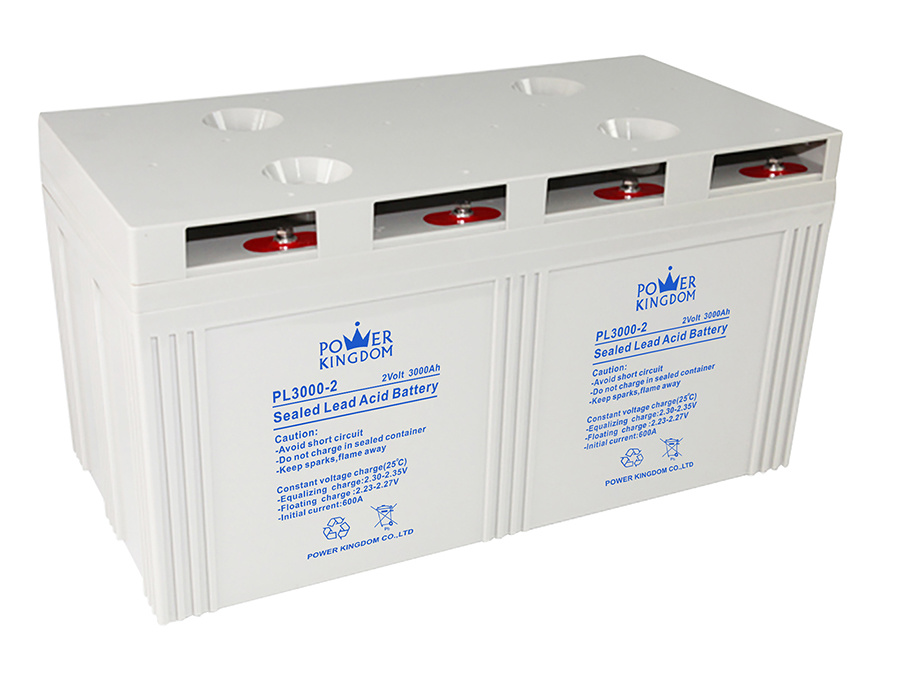

PL3000-2 |
2 |
3000 |
712 |
353 |
341 |
382 |
T14 |
O |
|
- Descriptioin
- Product Features
- Application field
-
- Commodity name: PL
- Commodity ID: 1113487065828970496
Battery in backup field: PL series (large capacity battery)
No.
Battery model
Rated voltage (V)
Rated capacity(Ah)
Overall size ±2%(mm)
Terminal
Remark
long
width
height
Total height
Type
Position
452
PL100-2B
2
100
170
72
205
208
T14
E
453
PL150-2B
2
150
172
102
205
228
T14
E
903
PL180-2V
2
180
172
111
329
366
T14
G
925
PL200-2B
2
200
172
111
329
366
T14
G
904
PL250-2V
2
250
171
150
329
366
T14
G
926
PL300-2B
2
300
171
150
329
366
T14
G
678
PL350-2
2
350
171
150
329
366
T14
G
905
PL350-2V
2
350
211
176
329
366
T14
H
927
PL400-2B
2
400
211
176
329
366
T14
H
680
PL450-2
2
450
211
176
329
366
T14
H
906
PL450-2V
2
450
241
172
330
366
T14
H
928
PL500-2B
2
500
241
172
330
366
T14
H
929
PL600-2B
2
600
301
175
330
366
T14
H
930
PL800-2B
2
800
410
176
330
365
T14
M
931
PL1000-2B
2
1000
475
175
329
365
T14
M
685
PL1200-2
2
1200
475
175
329
365
T14
M
932
PL1500-2B
2
1500
400
350
341
382
T14
N
933
PL2000-2B
2
2000
491
351
344
383
T14
O
934
PL3000-2B
2
3000
712
353
341
382
T14
O
688
PL3000-2
2
3000
712
353
341
382
T14
O
-
1. The sealed structure does not leak acid and meets the safe transportation requirements of the International Air Transport Association.
2. Adsorption glass fiber system (AGM system) to ensure battery life and stability.
3. Gas recycling, to ensure that more than 90% of the gas can be recycled normally.
4. Stable quality and reliable performance, which can guarantee long-term storage.
5. Long service life.
-
Products are used in communications, electricity, energy storage, coal mines, mines, national defense, railways, banks, marine equipment and other industries and UPS systems, EPS systems, security, solar, wind power, power tools, electric toys, electric vehicles, motorcycles, Emergency lighting and other fields. The "Yuguang" and "POWERKINGDOM" battery series produced are sold well in more than 50 countries and regions at home and abroad, including the United States, Britain, Germany, France, Japan, Brazil, India, and Africa.
